| Quantité de commande minimum: | 1 |
Ombre:

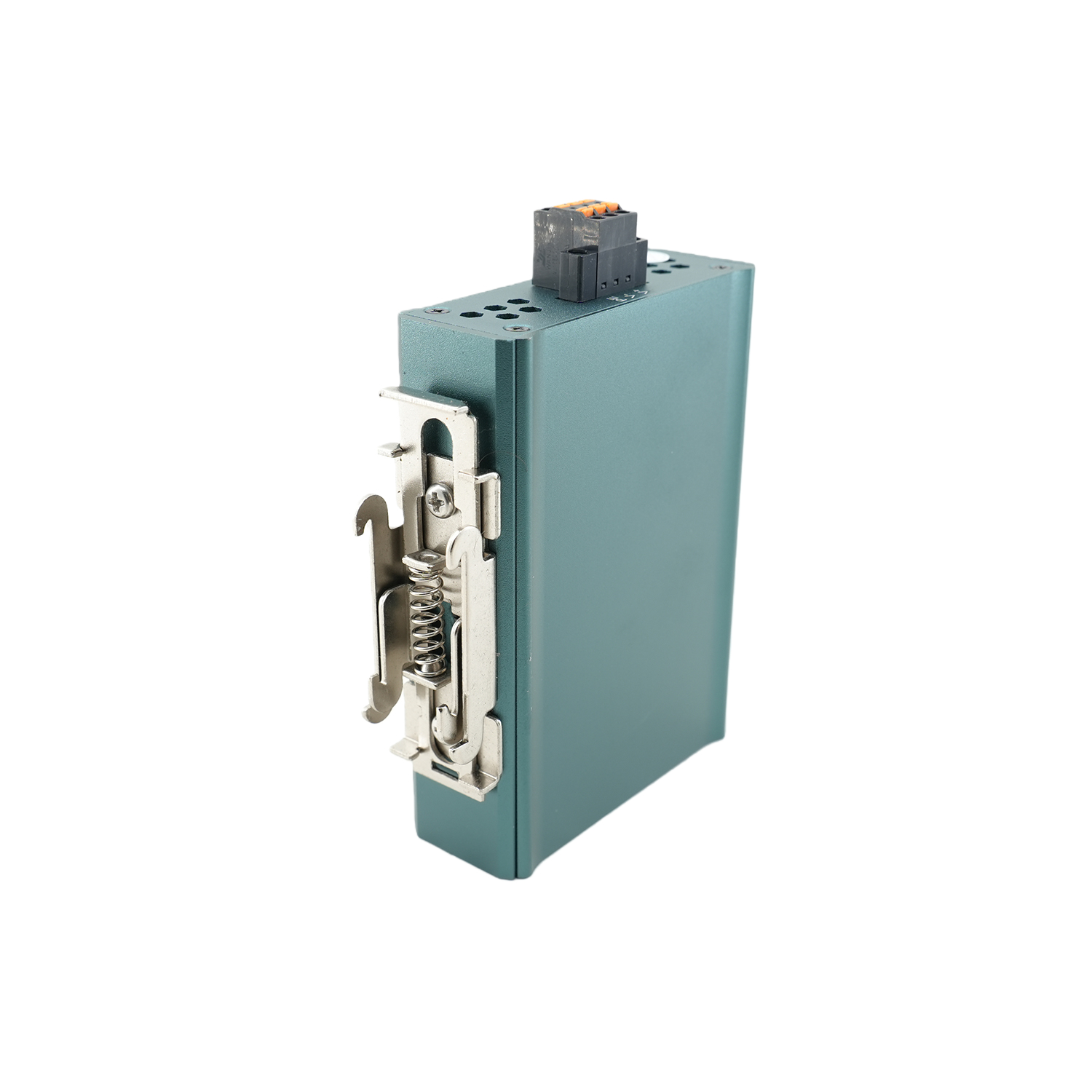

Modèle: ODOT-MS105T
The file is encrypted. Please fill in the following information to continue accessing it
| ODOT-MS105T/G | |
| Supports | IEEE 802.3/802.3x/802.3u |
| Input Voltage | Way 1: 19.2～28.8V DC |
| Installation | 35mm Din-rail |
| MAC address | ODOT-MS105T/MS108T 2K |
| ODOT-MS105G 2K | |
| Supports | Auto-negotiation 10/100Mbps、10/100/1000 Mbps Half/full duplex、Auto MDI/MDIX |
| WTP | -40～85 ℃ |
| Working Humidity | 5～90%(non-condensing) |
| Supports | Broadcast storm protection |
| Supports | Anti-reverse connection protection |
| Warranty | 3 years |
| Switch Attribution | |
| MAC address table size | 2K/4K |
| Packet buffer size | 512bit |
| Interface | RJ45 port：10/100BaseT(X)self-detection，MID/MDIXself adaption |
| Operation Enviroment | Temperature：-20～85 ℃、 Humidity：5～90%(non-condensing) |
| Storage | Temperature：-55～125 ℃、Humidity：5～90%(non-condensing) |
| Power | 19.2V～28.8V DC（suggested 24V） |
| Overcurrent Protection | 1.25A |
| Anti-reverse connection protection | Supports Anti-reverse connection protection |
| Technical Parameter | |
| Operaion Voltage | 19.2～28.8V DC |
| Working Temperature | -40～85 ℃ |
| Storage Temperature | -55～125℃ |
| Overcurrent protection | 1.25A |
| Power Consumption | 200mA@24V |
| Humidity | 5～95%（non-condensing） |
| Warranty | 3 years |
| ESD | 2KV |
| Electric Parameter | |
| Operation voltage | 19.2～28.8V DC |
| Working Temperature | -40～85 ℃ |
| Storage Temperature | -55～125℃ |
| Overcurrent protection | 1.25A |
| Overall power consumption | 100T:50mA@24V 100G:100mA@24V |
| Working Humidity | 5～95%（non-condensing） |
| Working Humidity | Working Humidity |
| Warrany | 3 years |
